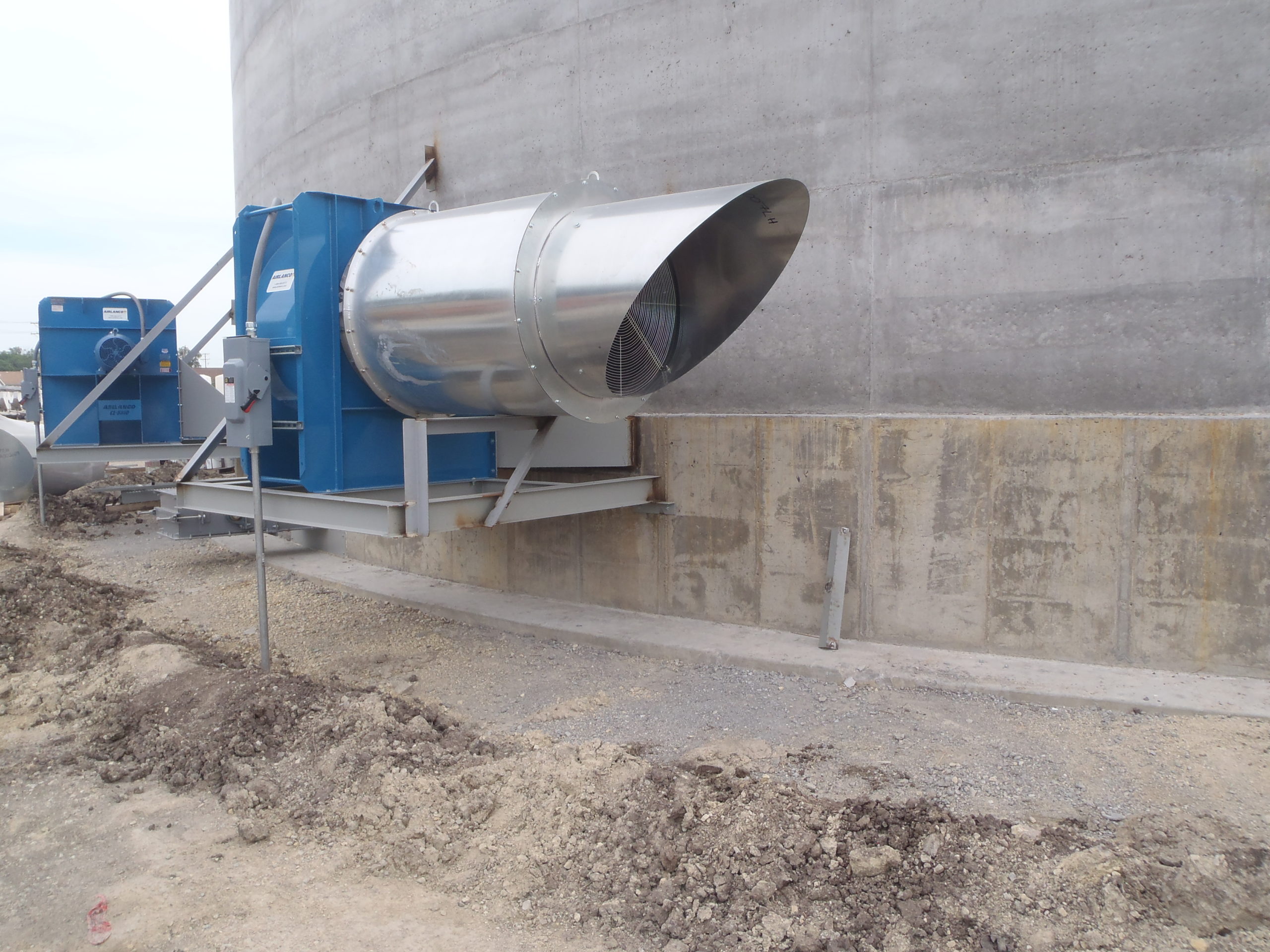

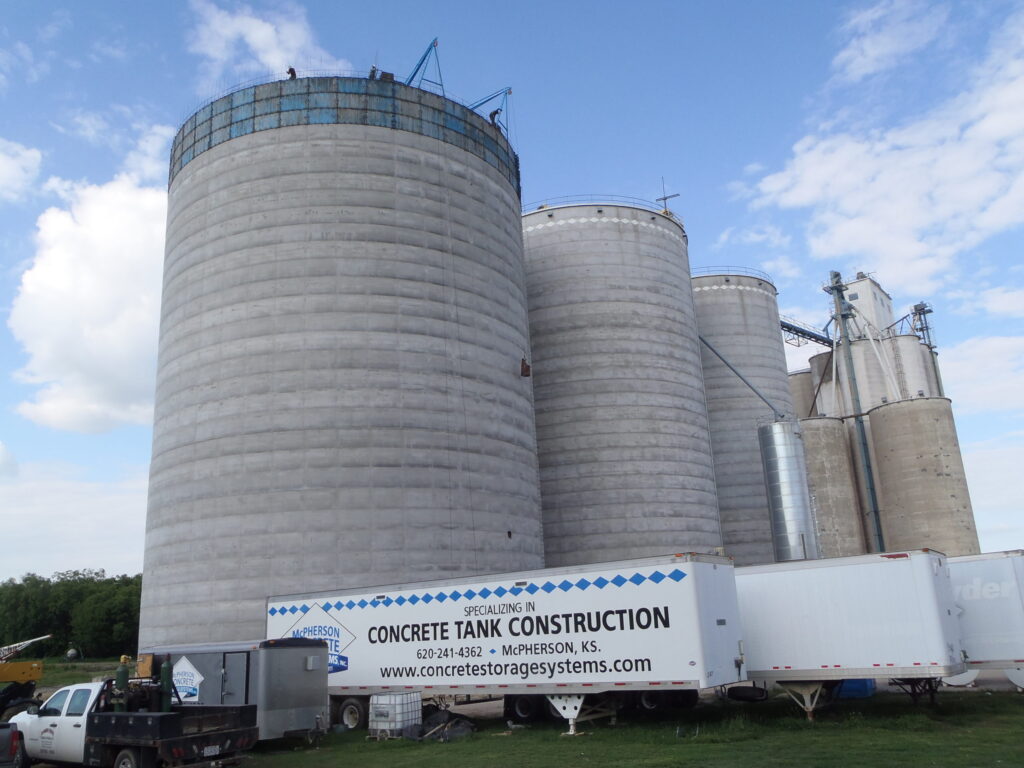

A McPherson Concrete 90’ diameter by 128’ sidewall bin give a rated capacity of over 700,000 bushels. Aeration and temperature detection systems provide up to 1/10 CFM per bushel on corn.
Upper fill capacity of 30,000 bph flows from existing elevating and transfer machinery to a Union Iron drag conveyor.
Union Iron drag conveyors allow for reclaim to the existing elevator at speeds up to 10,000 bph.

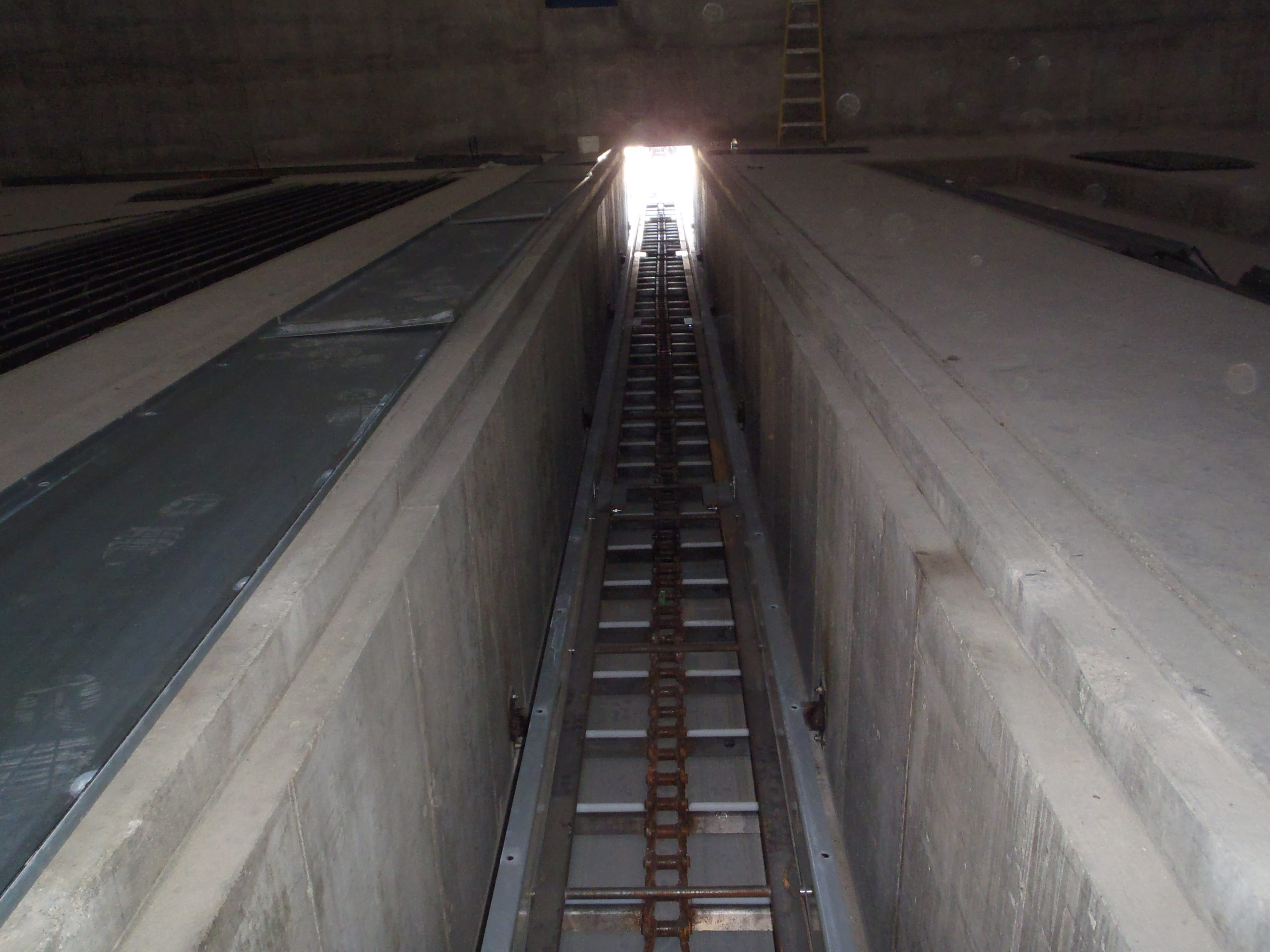

The Bin Gator sweep allows for final cleanout to a drag conveyor in a reclaim trench with steel covers.
The bin is also complete with a gravity sidedraw truck loadout spout.
